005-22061B
ProfilGate® xs55 dry tire cleaning system, WLH (mm) 1069 x 980 x 55, 1 x V2A-Tray, 3 x Grate
Unit Price
On Request
Supplier
HEUTE
Country of origin
Germany
Unit of Measurement
SET
Delivery time
10 - 12 weeks
Validity Until
31.12.2026

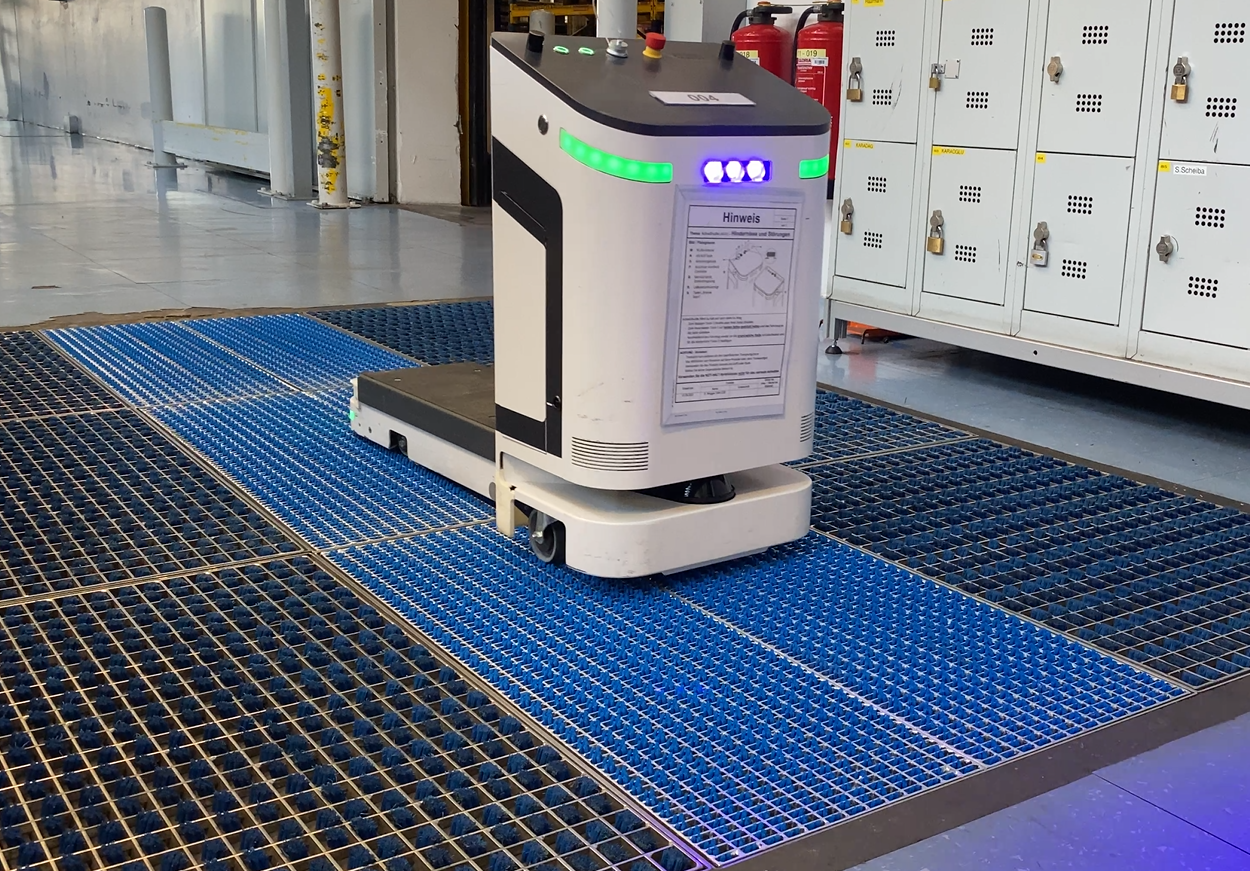

ProfilGate® Series xs is dry tire cleaning system for cleaning very small and narrow rollers, such as those used primarily in automated guided vehicles (AGVs). The xs model is integrated into existing AGV transport lanes. Cleaning is purely mechanical without electricity during the crossing and the goods are transported safely and reliably as usual.
Technical Data

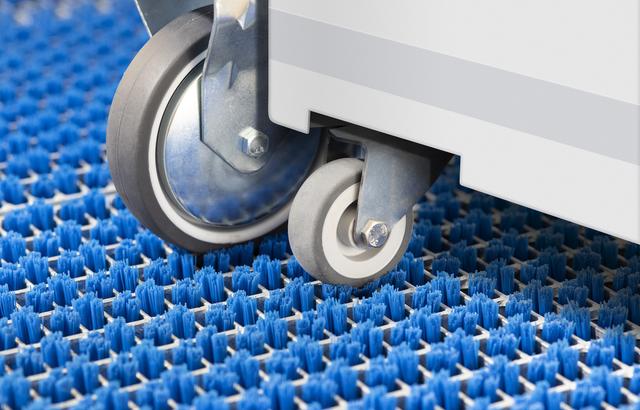

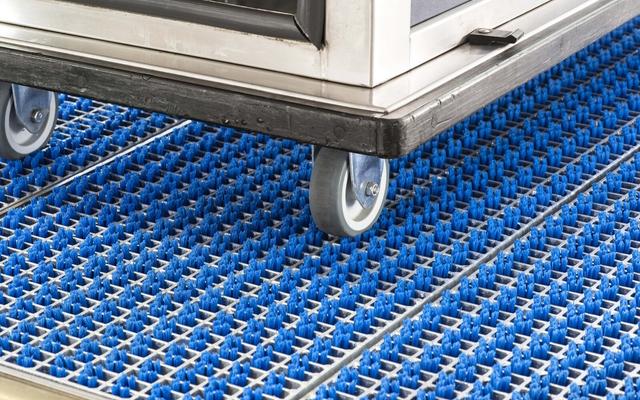

- For special cleaning of narrow rollers
- Ideal for in indoor areas
- Recommended number of passages per day < 100

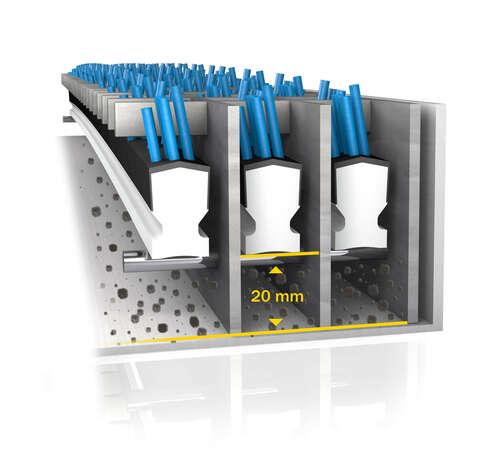

- Tray height [mm] 55
- Extra dirt / water container [mm] 10
- Optimum for tire cleaning
- Maximum admissible vehicle weight [t] 30
- Suitable for hard rollers

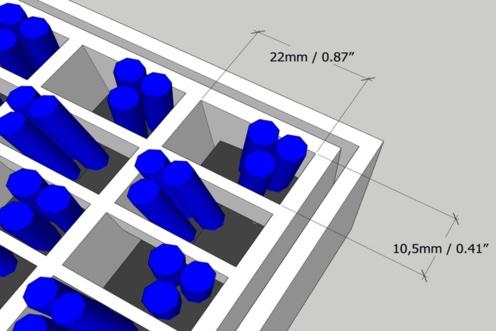

- Appropriate roller width [mm] ≥23
- Suitable for above ground application
- Steel (S 235 JR) grate
- Stainless steel V2A (1.4301) tray

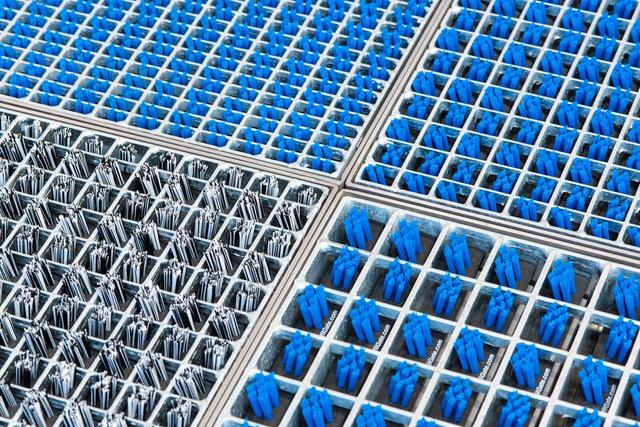

- Brush strip per grate 14
- Grates per segment 2

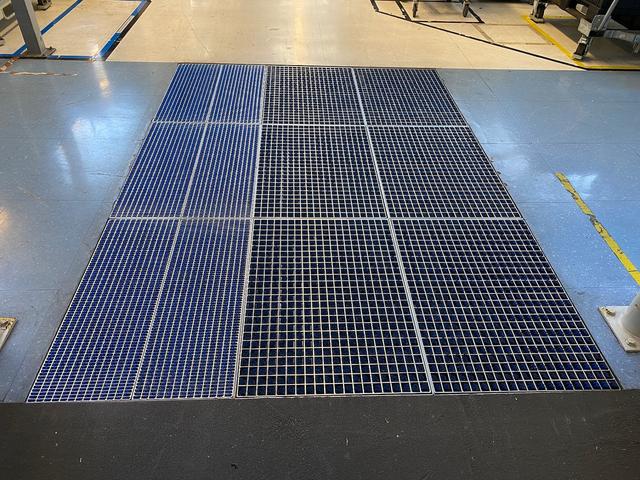

- Number of segments W x L 1.5 x 1
- Tray size W x L [mm] 1069 x 980
- Number of grates x weight [kg] 3 x 29
