40559-053-40921

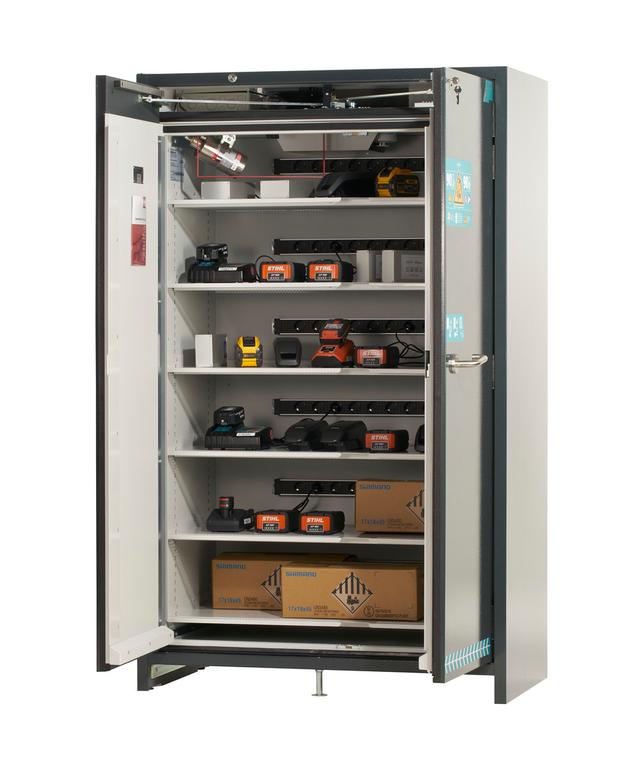

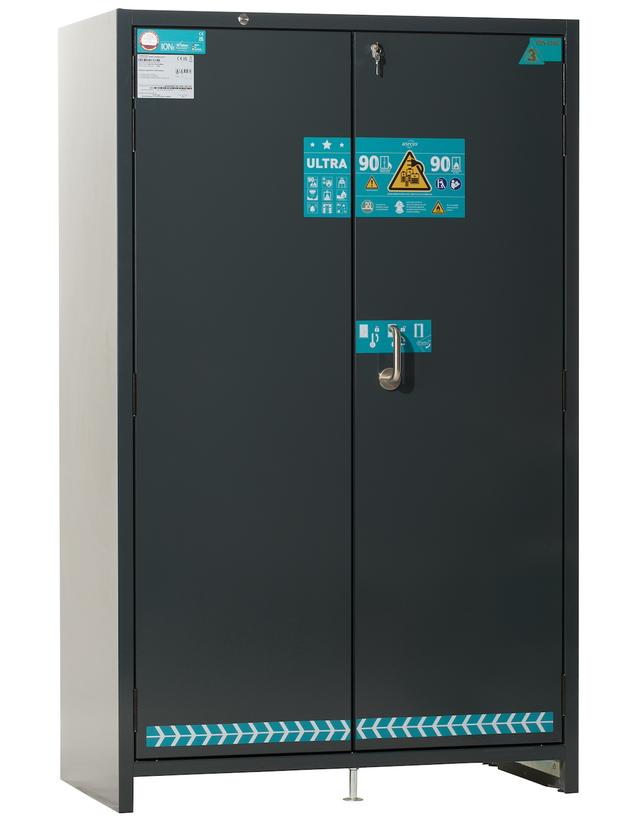

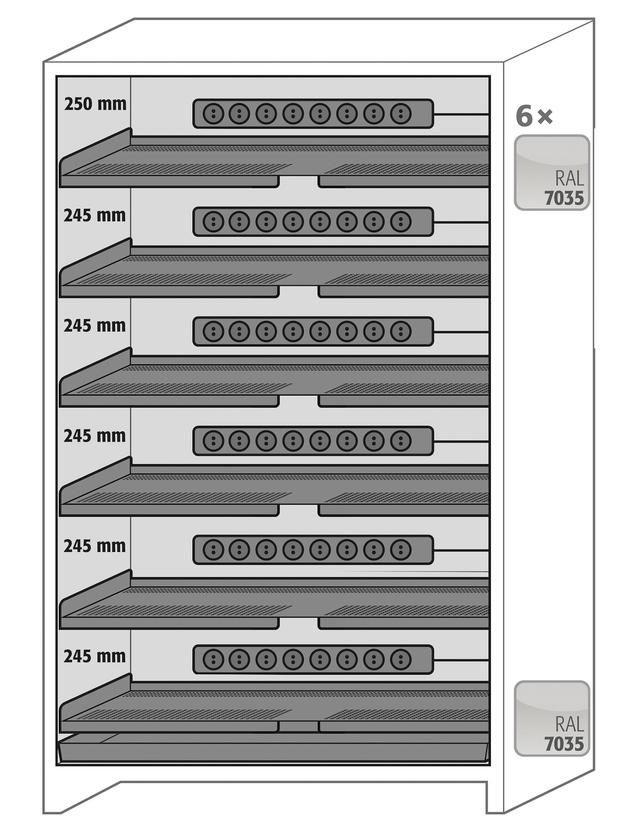

Asecos ION-ULTRA-90 model IO90.195.120.065.WDEL battery charging and storing cabinet, grey RAL 7016 & grey RAL 7016, (mm) 1193 x 615 x 1953, 6x insulated shelf incl. outlet strips, 1x bottom collecting sump (V=2.85L); Powder-coated sheet steel
Unit Price
On Request
Supplier
ASECOS
Country of origin
Germany
Unit of Measurement
EA
Delivery time
14 - 18 weeks
Validity Until
31.12.2026
The Asecos ION-LINE ULTRA is VDMA 24994 and GS-certified and offers maximum safety with improved fire protection, active flue gas management (incl. pressure relief, venting attachment and option to connect to a flue gas extraction system) and extended monitoring, even in particularly sensitive areas. It meets the requirements of GS principle EK5/AK4 22-01 for the testing and certification of safety storage cabinets for the storage of lithium-ion batteries.
Technical Data
- 90 minutes fire resistant
- Self-closing doors
- Integrated height adjusting aids
- Color grey RAL 7016 & grey RAL 7016
- External dimensions WDH [mm] 1193 x 650 x 1953
- Internal dimensions WDH [mm] 1050 x 545 x 1633
- Net weight configuration [kg] 638.5
- Maximum load [kg] 600
- Entry width transport base [mm] 1120
- Entry height transport base [mm] 90
- Power max. (1-phase) [kW] | Fuse (1-phase) [A] 3,68 | 16
- Power max. (3-phase) [kW] | Fuse (3-phase) [A] 11,04 | 3 x 16
- Nominal power consumption [W] 30
- Number of socket outlets per strip [pc] 8
- Nominal voltage [V] 230
- Frequency [Hz] 50/60
- According to standard EN 14470-1
Related Products
40559-047-40921

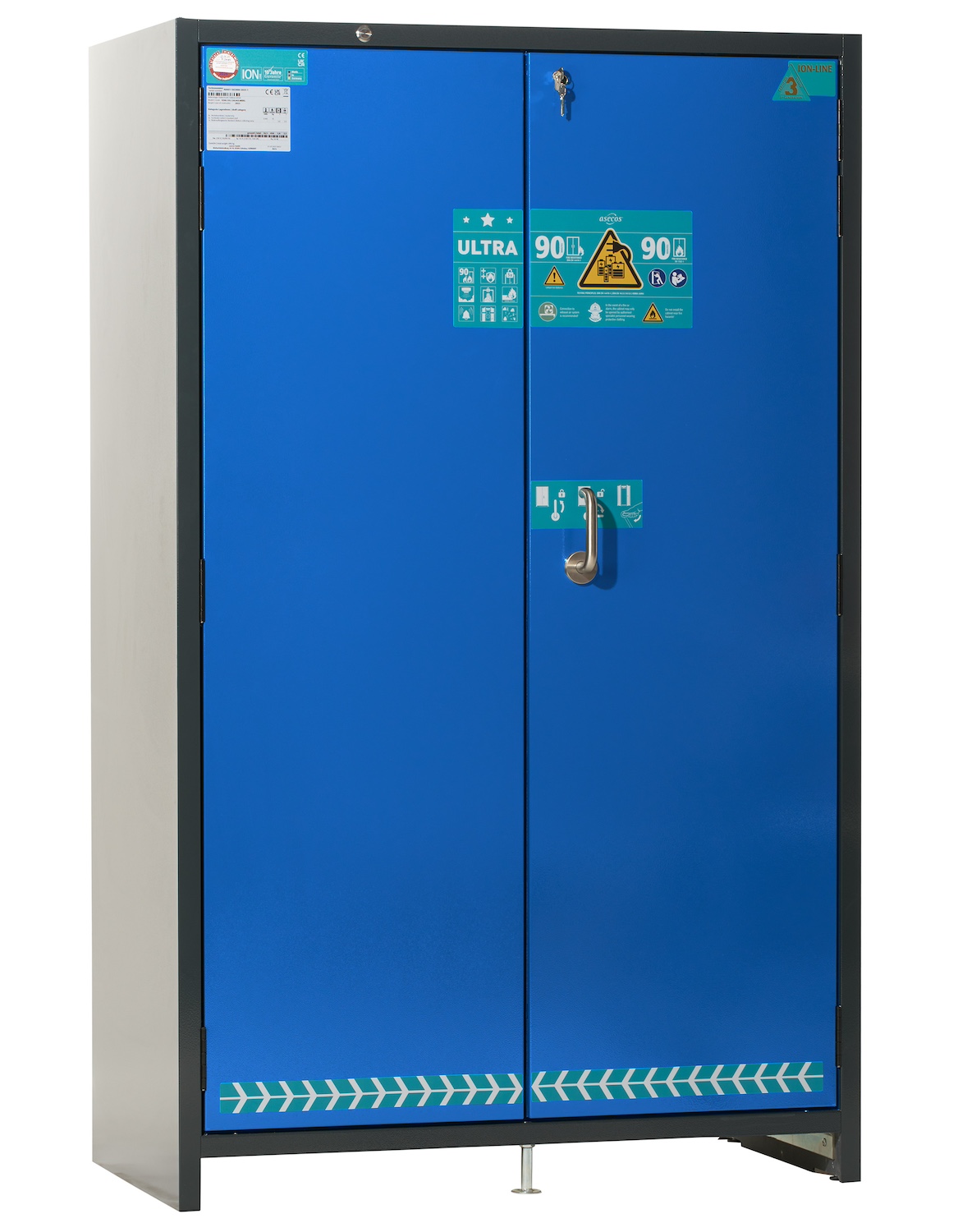

Asecos ION-ULTRA-90 model IO90.195.120.065.WDEL battery charging and storing cabinet,grey RAL 7016 & blue RAL 5010, (mm) 1193 x 650 x 1953, 6x insulated shelf incl. outlet strips, 1x bottom collecting sump (V=2.85L); Powder-coated sheet steel
